Say Hi to CNN

2.1. 資料類型

1. 人工收集

   • 預測股市股價: 開盤、收盤、成交量、技術指標、財務指標、籌碼指標等等

   • 以物品識別:大量物品照片並給予名稱(label)

   • 以注音符號手寫辨識: 大量手寫照片及其對應答案(label)

2. 現成資料集


   • MNIST
     資料集由 0~9 的數字影像構成(如圖1)，共計 60000 張訓練影像、10000 張測試影像。





     Figure 1: MNIST 資料集內容範例

   • Boston housing
     預測目標：房地產價格，特徵包括房地產客觀數據，如年份、平面大小


   • Iris
     鳶尾花資料集是非常著名的生物資訊資料集之一，取自美國加州大學歐文分校的機器學習資料庫，資料的筆數為150筆，共有五個欄位：花萼長度(Sepal Length)、花萼寬度(Sepal Width)、花瓣長度(Petal Length) 、花瓣寬度(Petal Width)、類別(Class)：可分為Setosa，Versicolor和Virginica三個品種。

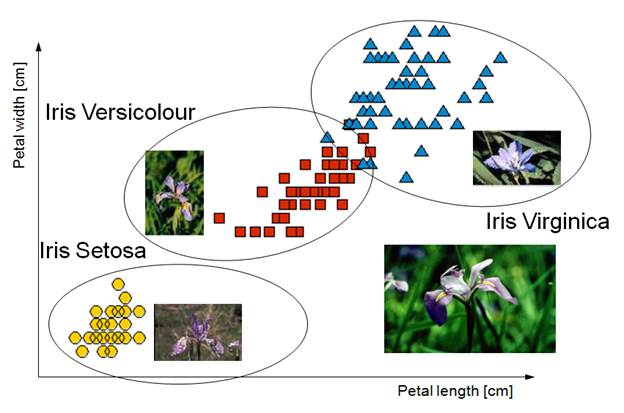

     Figure 2: Iris資料集

   • Cifar-10
     由深度學習大師 Geoffrey Hinton 教授與其在加拿大多倫多大學的學生 Alex Krixhevsky 與 Vinoid Nair 所整理之影像資料集, 包含 6 萬筆 32*32 低解析度之彩色圖片, 其中 5 萬筆為訓練集; 1 萬筆為測試集, 是機器學習中常用的圖片辨識資料集

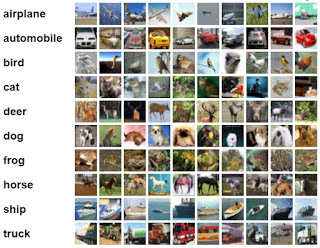

     Figure 3: Cifar-10

2.2. DEMO

from keras.datasets import mnist
(x_Train, y_Train), (x_Test, y_Test) = mnist.load_data()

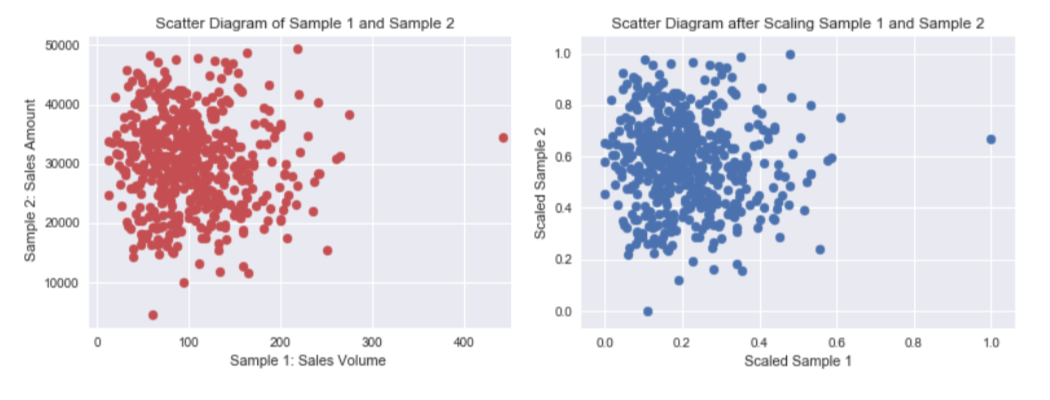

3.1. 常態化

from sklearn.preprocessing import MinMaxScaler
mms = MinMaxScaler()
X_train_norm = mms.fit_transform(X_train)
X_test_norm = mms.fit_transform(X_test)

3.2. 標準化

from sklearn.preprocessing import StandardScaler
stdsc = StandardScaler()
X_train_std = stdsc.fit_transform(X_train)
X_test_std = stdsc.transform(X_test)

3.3. DEMO

x_train = x_train.reshape(60000, 784)
x_test = x_test.reshape(10000, 784)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255


y_TrainOneHot = np_utils.to_categorical(y_Train)
y_TestOneHot = np_utils.to_categorical(y_Test)

4.1. 語法

4.2. DEMO

1. LSTM


   model = Sequential()
   model.add(LSTM(128,
                  input_shape=(x_train.shape[1:]),
                  activation='relu',
                  return_sequences=True))
   model.add(Dropout(0.2))
   model.add(LSTM(128, activation='relu'))
   model.add(Dropout(0.1))
   model.add(Dense(32, activation='relu'))
   model.add(Dropout(0.2))
   model.add(Dense(10, activation='softmax'))




2. CNN


   model = Sequential()
   model.add(Dense(units=128,
                   input_dim=784,
                   kernel_initializer='normal',
                   activation='relu'))
   model.add(Dense(64, activation='relu')
   model.add(Dense(units=10,
                   kernel_initializer='normal',
                   activation='softmax'))







   Figure 5: MNIST-NeuralNet

5.1. 語法

5.2. DEMO

1. LSTM


   # ptimizer, loss function
   model.compile(optimizer=Adam(lr=0.001),
                 loss='categorical_crossentropy',
                 metrics=['accuracy'])

   model.fit(x_train, y_train,
             epochs=3,
             validation_data=(x_test, y_test))


2. CNN


   # optimizer, loss function
   model.compile(loss='categorical_crossentropy',
                 optimizer='adam', metrics=['accuracy'])

   model.fit(x=x_Train,
             y=y_TrainOneHot,
             validation_split=0.2,
             epochs=5, batch_size=30, verbose=2)


7.1. model參數

7.2. Hyperparameters

9.1. 產生數據

import matplotlib.pyplot as plt
import numpy as np

x = np.random.uniform(0.0, 3, (2000))
y = 78 + 7.8*x + np.random.normal(0.0, 3, len(x))

plt.scatter(x, y)



x_Train = x[:1500]
x_Test = x[1500:]
y_Train = y[:1500]
y_Test = y[1500:]

9.2. 建立model

from keras.models import Sequential
from keras.layers import Dense
from keras.layers import Dropout

# A simple regression model
model = Sequential()
model.add(Dense(4, input_shape=(1,)))
model.add(Dropout(0.5))
model.add(Dense(8, input_shape=(1,)))
model.add(Dropout(0.5))
model.add(Dense(1, input_shape=(1,)))
model.compile(loss='mse', optimizer='rmsprop')

9.3. 訓練model

# The fit() method - trains the model
train_history = model.fit(x=x_Train, y=y_Train,
                          validation_split=0.2,
                          epochs=1000, batch_size=200,
                          verbose=0)

9.4. 查看訓練過程

print(train_history.history)
print(train_history.history.keys())

import matplotlib.pyplot as plt
plt.title('Train History')
plt.ylabel('loss')
plt.xlabel('Epoch')
plt.plot(train_history.history['loss'])
plt.plot(train_history.history['val_loss'])
plt.show()

9.5. 評估model

# The evaluate() method - gets the loss statistics
score = model.evaluate(x_Test, y_Test, batch_size=200)
print(score)

9.6. 預測結果

# The predict() method - predict the outputs for the given inputs
model.predict(np.expand_dims(x_Test[:3],1))
print(x_Test[:3])
print(y_Test[:3])
model.predict(x_Test[:3])

9.7. 調整model/參數

1. model架構

2. loss function

3. optimizer

4. hyper parameters

5. #1


   # A simple regression model
   model = Sequential()
   model.add(Dense(4, input_shape=(1,)))
   model.add(Dense(8, input_shape=(1,)))
   model.add(Dense(4, input_shape=(1,)))
   model.add(Dense(1, input_shape=(1,)))
   model.compile(loss='mean_squared_error', optimizer='rmsprop')
   #mean_squared_logarithmic_error
   #mean_absolute_percentage_error



6. #2


   model = Sequential()
   model.add(Dense(4, input_shape=(1,)))
   model.add(Dense(8, input_shape=(1,)))
   model.add(Dense(16, input_shape=(1,)))
   model.add(Dense(32, input_shape=(1,)))
   model.add(Dense(16, input_shape=(1,)))
   model.add(Dense(4, input_shape=(1,)))
   model.add(Dense(1, input_shape=(1,)))
   model.compile(loss='mse', optimizer='rmsprop')


10.1. 數據

import numpy as np

# Seed the random number generator for reproducibility
np.random.seed(0)

x_data = np.linspace(-10, 10, num=2000)

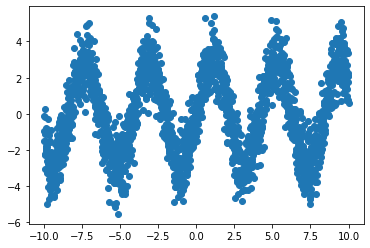

y_data = 2.9 * np.sin(1.5 * x_data) + np.random.normal(size=len(x_data))

plt.scatter(x_data, y_data)

11.1. MNIST

11.2. 準備 MNIST 資料

1. load data


   MNIST 資料集是一個適合拿來當作 TensotFlow 的練習素材，在 Tensorflow 的現有套件中，也已經有內建好的 MNIST 資料集，我們只要在安裝好 TensorFlow 的 Python 環境中執行以下程式碼，即可將 MNIST 資料成功讀取進來。.


   import tensorflow as tf
   mnist = tf.keras.datasets.mnist
   (x_train, y_train), (x_test, y_test) = mnist.load_data() (get-keras-mnist)


   在訓練模型之前，需要將樣本資料劃分為訓練集、測試集，有些情況下還會劃分為訓練集、測試集、驗證集。由上述程式第get-keras-mnist行可知，下載後的 MNIST 資料分成訓練資料(training data)與測試資料(testing data)，其中 x 為圖片、y為所對應數字。


   import tensorflow as tf
   mnist = tf.keras.datasets.mnist
   (x_train, y_train), (x_test, y_test) = mnist.load_data()
   # =====================================
   # 判斷資料形狀
   print(x_train.shape)
   print(x_test.shape)
   # 第一個label的內容
   print(y_train[0])
   # 顯示影像內容
   import matplotlib.pylab as plt
   img = x_train[0]
   plt.imshow(img)
   plt.savefig("MNIST-Image.png")


   (60000, 28, 28)
   (10000, 28, 28)
   5


   由上述程式輸出結果可以看到載入的 x 為大小為 28*28 的圖片共 60000 張，每一筆 MNIST 資料的照片(x)由 784 個 pixels 組成（28*28），照片內容如圖7，訓練集的標籤(y)則為其對應的數字(0～9)，此例為 5。

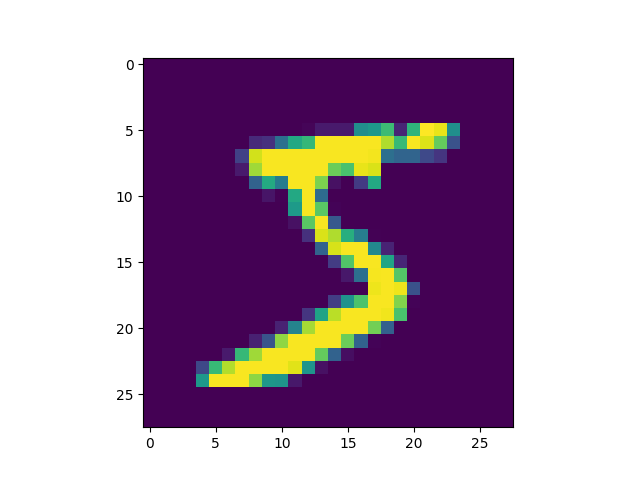

   Figure 7: MNIST 影像示例

   x 的影像資料為灰階影像，每個像素的數值介於 0~255 之間，矩陣裡每一項的資料則是代表每個 pixel 顏色深淺的數值，如下圖8所示：

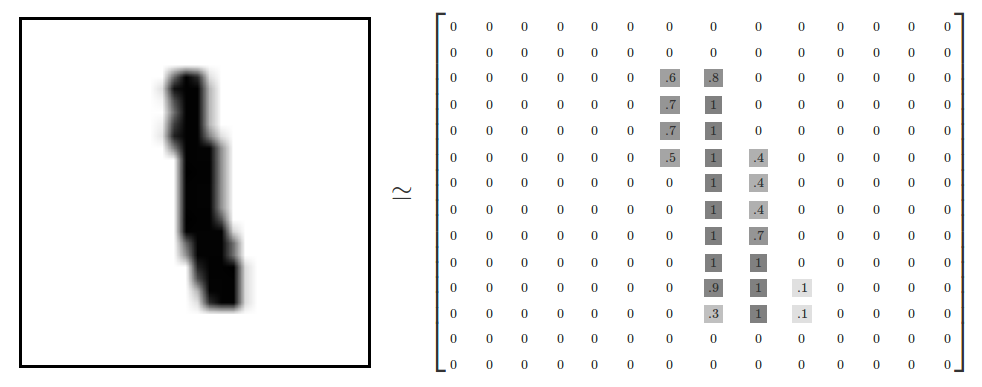

   Figure 8: MNIST 資料矩陣

   載入的 y 為所對應的數字 0~9，在這我們要運用 keras 中的 np_under_utils.to_under_categorical 將 y 轉成 one-hot 的形式，將他轉為一個 10 維的 vector，例如：我們所拿到的資料為 y=3，經過 np_utils.to_categorical，會轉換為 y=[0,0,0,1,0,0,0,0,0,0]。這部份的轉換程式碼如下：


   from keras.datasets import mnist
   from keras.utils import np_utils
   import tensorflow as tf

   mnist = tf.keras.datasets.mnist
   (x_train, y_train), (x_test, y_test) = mnist.load_data()
   # =====================================
   # 將圖片轉換為一個60000*784的向量，並且標準化
   x_train = x_train.reshape(60000, 784).astype('float32')
   x_test = x_test.reshape(10000, 784).astype('float32')
   x_train = x_train/255
   x_test = x_test/255
   # 將y轉換成one-hot encoding
   y_train = np_utils.to_categorical(y_train, 10)
   y_test = np_utils.to_categorical(y_test, 10)
   # 回傳處理完的資料
   print(y_train[0])

   import numpy as np
   np.set_printoptions(precision=2)
   #print(x_train[0])


   [0. 0. 0. 0. 0. 1. 0. 0. 0. 0.]


11.3. MNIST 的推論處理

11.4. MNIST 資料集:以 DNN Sequential 模型為例

1. Import Library


   from keras.datasets import mnist
   from keras.utils import np_utils
   import numpy as np
   np.random.seed(10)


2. 資料預處理


   (x_Train, y_Train), (x_Test, y_Test) = mnist.load_data()
   import matplotlib.pyplot as plt

   ##print(x_Train[1].shape)
   #print(x_Train[1])
   #plt.imshow(x_Train[1])
   ##y_Train[1]

   x_Train=x_Train.reshape(x_Train.shape[0],28,28,1).astype('float32')
   x_Test=x_Test.reshape(x_Test.shape[0],28,28,1).astype('float32')
   #x_Train4D[1].shape
   #print(x_Train4D[1])

   x_Train = x_Train / 255
   x_Test = x_Test / 255

   y_Train = np_utils.to_categorical(y_Train)
   y_Test = np_utils.to_categorical(y_Test)


3. 建立模型


   activation function的選擇: Keras API reference / Layers API / Layer activation functions


   from keras.models import Sequential
   from keras.layers import Dense
   from keras.layers import Dropout

   model = Sequential()
   #將模型疊起
   model.add(Dense(input_dim=28*28,units=128,activation='relu'))
   model.add(Dense(units=64,activation='relu'))
   model.add(Dense(units=10,activation='softmax'))
   # model.summary()


4. 訓練模型


   Model training APIs


   model.compile(loss='categorical_crossentropy',
                 optimizer='adam',metrics=['accuracy'])

   train_history=model.fit(x=x_Train,
                           y=y_Train,validation_split=0.2,
                           epochs=6, batch_size=300,verbose=2)


5. 查看訓練過程


   import matplotlib.pyplot as plt
   def show_train_history(train_acc,test_acc):
       plt.plot(train_history.history[train_acc])
       plt.plot(train_history.history[test_acc])
       plt.title('Train History')
       plt.ylabel('Accuracy')
       plt.xlabel('Epoch')
       plt.legend(['train', 'test'], loc='upper left')
       plt.show()

   show_train_history('accuracy','val_accuracy')
   show_train_history('loss','val_loss')


6. 評估模型準確率


   scores = model.evaluate(x_Test , y_Test, batch_size = 200)
   scores[1]


7. 實際預測結果


   prediction=model.predict_classes(x_Test)
   prediction[:10]

   import matplotlib.pyplot as plt
   def plot_images_labels_prediction(images,labels,prediction,idx,num=10):
       fig = plt.gcf()
       fig.set_size_inches(12, 14)
       if num>25: num=25
       for i in range(0, num):
           ax=plt.subplot(5,5, 1+i)
           ax.imshow(images[idx], cmap='binary')

           ax.set_title("label=" +str(labels[idx])+
                        ",predict="+str(prediction[idx])
                        ,fontsize=10)

           ax.set_xticks([]);ax.set_yticks([])
           idx+=1
       plt.show()
   plot_images_labels_prediction(x_Test,y_Test,prediction,idx=0) #要用到原始的值


8. confusion matrix


   import pandas as pd
   pd.crosstab(y_Test,prediction,
               rownames=['label'],colnames=['predict'])


   # 載入資料
   from keras.datasets import mnist
   from keras.utils import np_utils

   def load_data():
       # 載入minst的資料
       (x_train, y_train), (x_test, y_test) = mnist.load_data()
       # 將圖片轉換為一個60000*784的向量，並且標準化
       x_train = x_train.reshape(x_train.shape[0], 28*28)
       x_test = x_test.reshape(x_test.shape[0], 28*28)
       x_train = x_train.astype('float32')
       x_test = x_test.astype('float32')
       x_train = x_train/255
       x_test = x_test/255
       # 將y轉換成one-hot encoding
       y_train = np_utils.to_categorical(y_train, 10)
       y_test = np_utils.to_categorical(y_test, 10)
       # 回傳處理完的資料
       return (x_train, y_train), (x_test, y_test)

   import numpy as np
   from keras.models import Sequential
   from keras.layers.core import Dense,Activation
   from keras.optimizers import  Adam

   def build_model():#建立模型
       model = Sequential()
       #將模型疊起
       model.add(Dense(input_dim=28*28,units=128,activation='relu'))
       model.add(Dense(units=64,activation='relu'))
       model.add(Dense(units=10,activation='softmax'))
       model.summary()
       return model

   # 開始訓練模型，此處使用了Adam做為我們的優化器，loss function選用了categorical_crossentropy。
   (x_train,y_train),(x_test,y_test)=load_data()
   model = build_model()
   #開始訓練模型
   model.compile(loss='categorical_crossentropy',optimizer="adam",metrics=['accuracy'])
   model.fit(x_train,y_train,batch_size=100,epochs=5)
   #顯示訓練結果
   score = model.evaluate(x_train,y_train)
   print ('\nTrain Acc:', score[1])
   score = model.evaluate(x_test,y_test)
   print ('\nTest Acc:', score[1])

   ### 進行預測
   prediction = model.predict_classes(x_Test4D_normalize)
   print(prediction[:10])
   plot_images_labels_prediction("CNN_MNist", x_Test, y_Test, prediction, idx=0)
   import pandas as pd
   p = pd.crosstab(y_Test, prediction, rownames=['label'], colnames=['predict'])
   print(p)



   _________________________________________________________________
   Layer (type)                 Output Shape              Param #
   =================================================================
   dense_1 (Dense)              (None, 500)               392500
   _________________________________________________________________
   dense_2 (Dense)              (None, 500)               250500
   _________________________________________________________________
   dense_3 (Dense)              (None, 500)               250500
   _________________________________________________________________
   dense_4 (Dense)              (None, 10)                5010
   =================================================================
   Total params: 898,510
   Trainable params: 898,510
   Non-trainable params: 0
   _________________________________________________________________
   Epoch 1/20

     100/60000 [..............................] - ETA: 2:55 - loss: 2.2917 - acc: 0.1300
     800/60000 [..............................] - ETA: 25s - loss: 1.6424 - ACM: 0.5362
   .......
   16300/60000 [=======>......................] - ETA: 4s - loss: 0.3752 - acc: 0.8898
   17000/60000 [=======>......................] - ETA: 4s - loss: 0.3681 - acc: 0.8916
   .......
   50600/60000 [========================>.....] - ETA: 0s - loss: 0.2232 - acc: 0.9335
   51300/60000 [========================>.....] - ETA: 0s - loss: 0.2220 - acc: 0.9338
   .......
   59700/60000 [============================>.] - ETA: 0s - loss: 0.2078 - acc: 0.9377
   60000/60000 [==============================] - 5s 81us/step - loss: 0.2074 - acc: 0.9379
   Epoch 2/20

     100/60000 [..............................] - ETA: 5s - loss: 0.0702 - acc: 0.9800
   ......
   60000/60000 [==============================] - 5s 77us/step - loss: 0.0832 - acc: 0.9740
   Epoch 3/20
   ......
   Epoch 29/20

      32/60000 [..............................] - ETA: 1:10
    1440/60000 [..............................] - ETA: 3s
   ......
   58496/60000 [============================>.] - ETA: 0s
   60000/60000 [==============================] - 2s 34us/step

   Train Acc: 0.9981666666666666

      32/10000 [..............................] - ETA: 0s
    1568/10000 [===>..........................] - ETA: 0s
    3104/10000 [========>.....................] - ETA: 0s
    4640/10000 [============>.................] - ETA: 0s
    6176/10000 [=================>............] - ETA: 0s
    7680/10000 [======================>.......] - ETA: 0s
    9184/10000 [==========================>...] - ETA: 0s
   10000/10000 [==============================] - 0s 33us/step

   Test Acc: 0.9823


12.1. 背景

12.2. 作業要求

13.1. Resources

1. 如何讀取自己的資料: Loading Custom Image Dataset for Deep Learning Models: Part 1

2. Typical steps for loading custom dataset for Deep Learning Models

   1. Open the image file. The format of the file can be JPEG, PNG, BMP, etc.

   2. Resize the image to match the input size for the Input layer of the Deep Learning model.

   3. Convert the image pixels to float datatype.

   4. Normalize the image to have pixel values scaled down between 0 and 1 from 0 to 255.

   5. Image data for Deep Learning models should be either a numpy array or a tensor object.

3. Data augmentation

   • Kaggle知識點：資料擴增方法

   • 影像資料擴增 (Image Data Augmentation) 的原理與實作

   • 深度學習領域的資料增強
